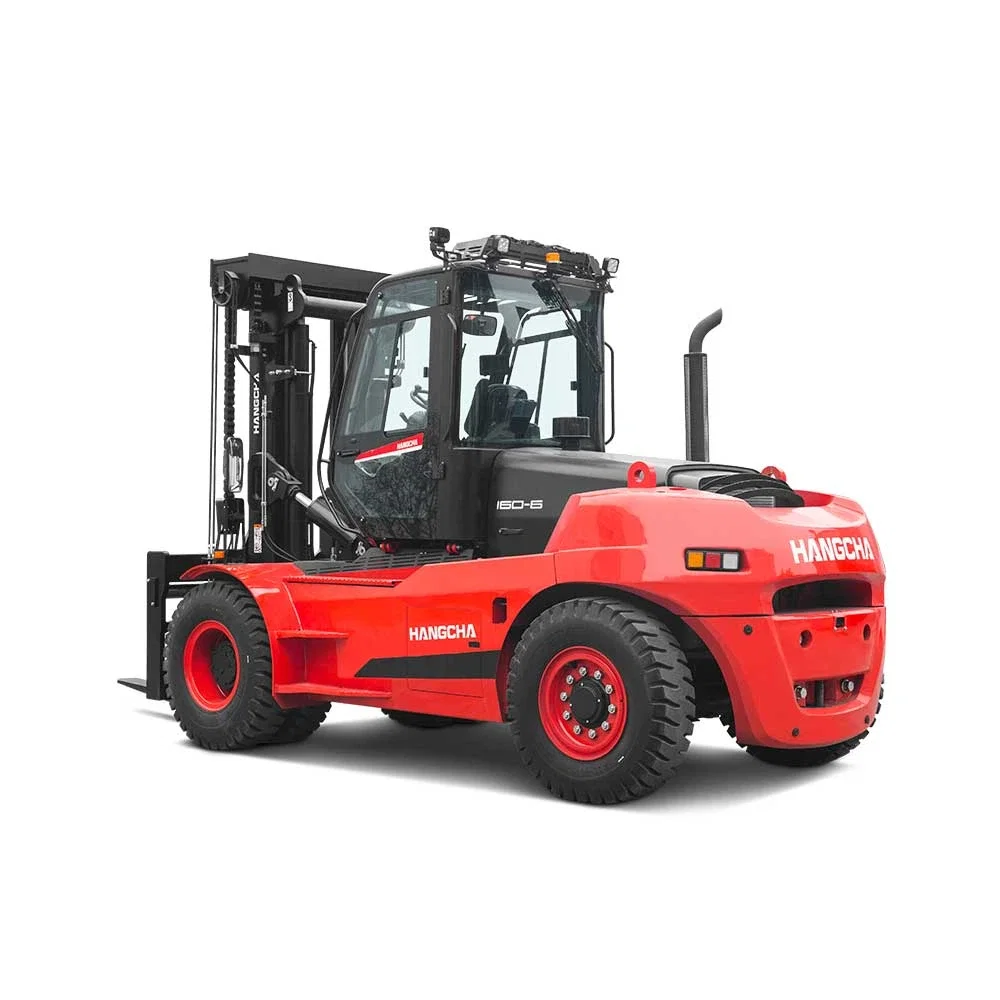

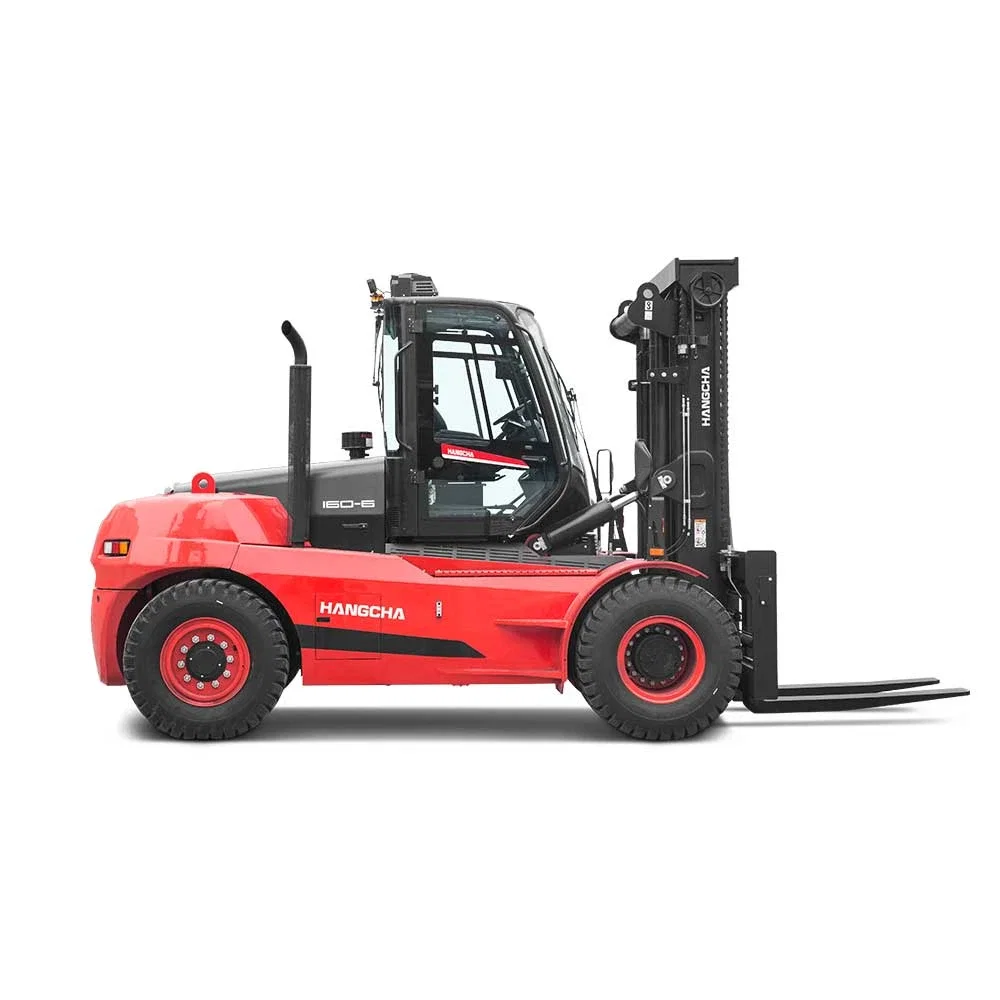

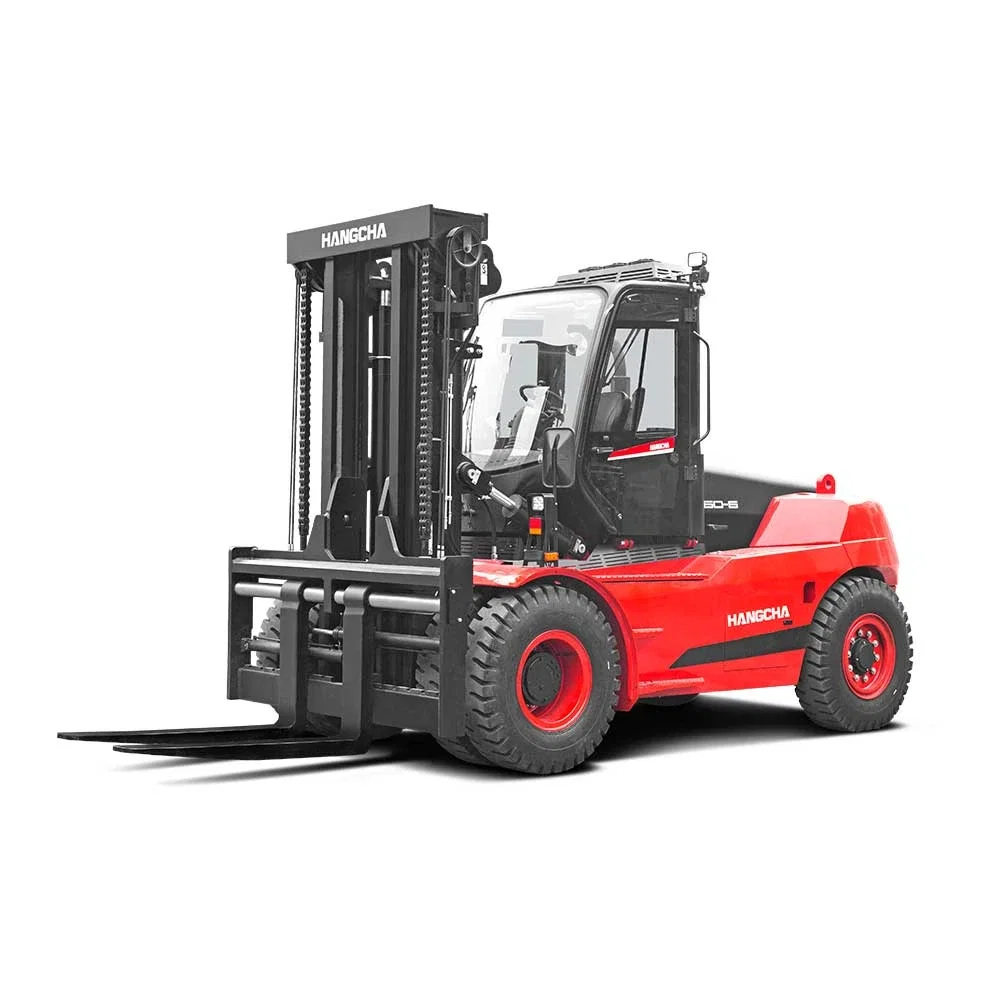

12-16t Internal Combustion Counterbalanced Forklift Truck
- Load Capacity 12000-16000 kg
- Lift Height 3000-6500mm
- Drive Types Diesel
Highlights

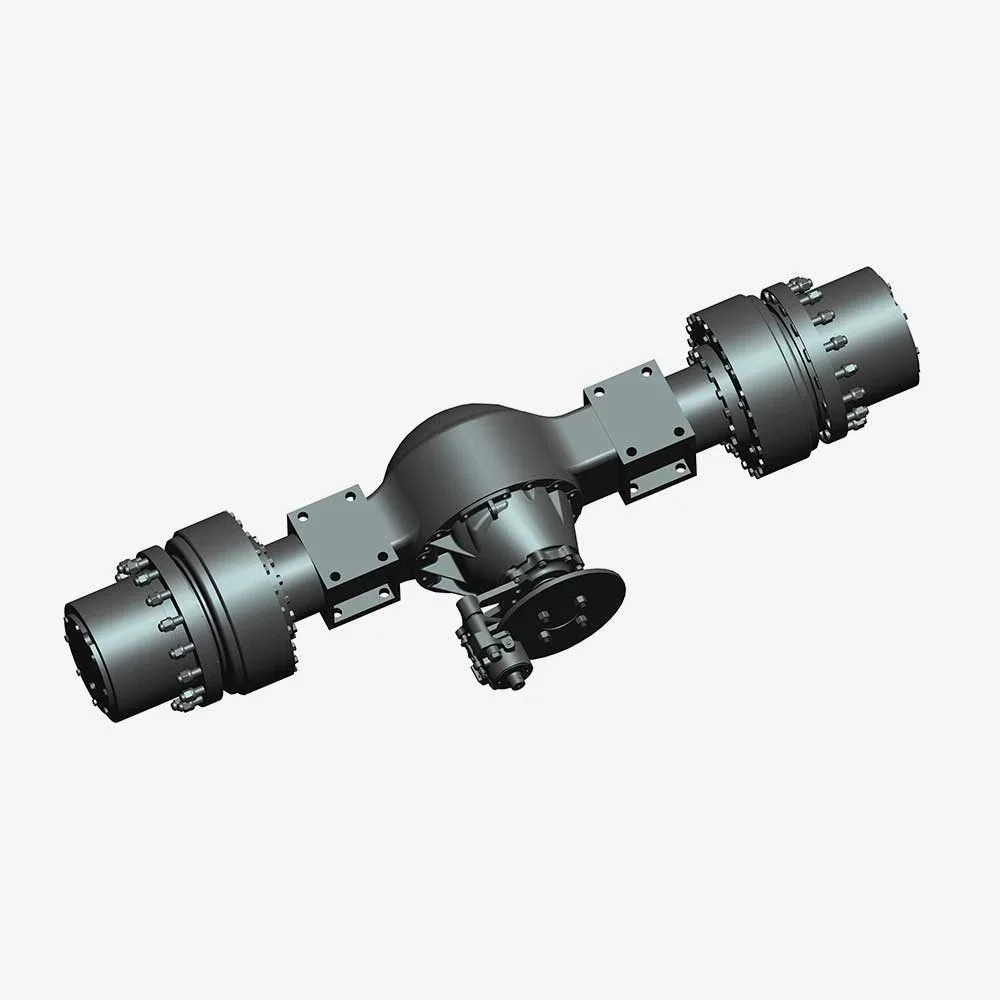

The heavy-duty traction axle incorporates two-stage deceleration for improved torque and durability. It is equipped with maintenance-free wet brakes and a hydraulically released, spring-applied parking brake, ensuring safe and reliable braking performance.

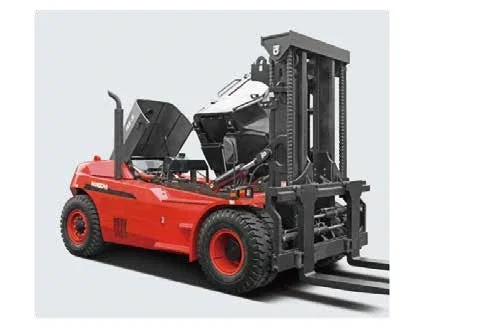

Thanks to its unique design, the cab can be tilted without the use of tools, providing easy access to major service components and maximizing maintenance efficiency.

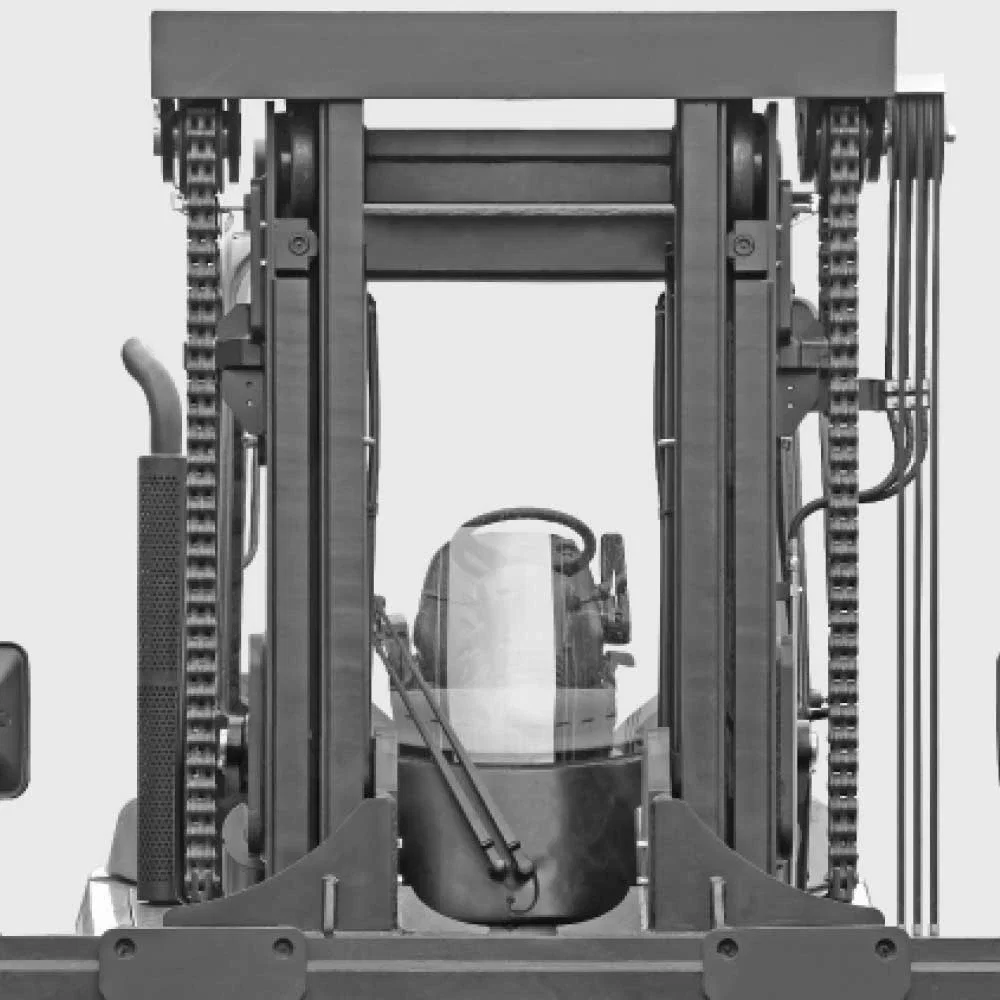

The overall vehicle design offers excellent all-round visibility, enhancing operational safety.

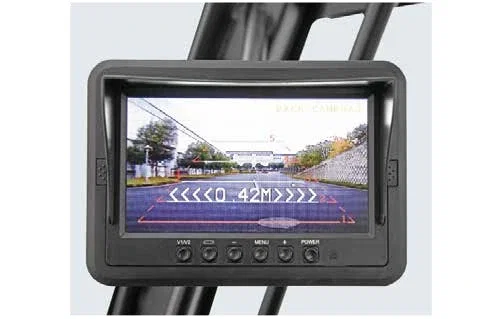

An optional imaging system with front and rear cameras is available to further improve safety by minimizing blind spots.
Features
Comfort
The compact integrated joystick allows for precise remote control, while the optimized hydraulic braking curve ensures smooth, responsive braking. A suspended seat, along with an ergonomically designed, multi-directionally adjustable console, provides enhanced operator comfort and ease of control.
High Performance
Upgraded with a new cab, wet brake drive axle, hydraulically adjustable forks, LCD bus instrumentation, air conditioning with heating and cooling, LED vehicle lights, snail horn, and reversing radar—all included as standard. The reserved design layout also supports a wide range of optional add-ons, greatly enhancing flexibility and performance.
Fully-Suspended All-Round Vision Cab
The newly designed HPC fully-suspended cab offers excellent all-round visibility, supported by an optimized vehicle profile. Improved air conditioning ensures even air distribution and stronger cooling. Its sealing structure—waterproof, dustproof, heatproof, and sound-insulated—significantly enhances operator comfort. Molded interior components add to the refined experience, while the robust frame, built with profiled steel tubes, provides superior structural strength.
Safety
Wide-angle visibility reduces blind spots and improves driving safety. The cab is connected to the frame via a spindle and hydraulic self-locking mechanism. When the electric or manual pump is activated, the hydraulic lock disengages automatically, allowing the cab to tilt sideways past the center of gravity. This design enhances both safety and maintenance convenience.
Ergonomic Design
Every touchpoint—from the steering wheel and joystick to control buttons, pedals, and seat—follows ergonomic principles to ensure intuitive and fatigue-free operation.
Other Specifications
| Product Type | IC- Trucks |
|---|---|
| Load Capacity | 12000-16000 kg |
| Lift Height | 3000-6500mm |
| Service Weight | 16000-19200 kg |
| Dimensions (L/W/H) | L:6190-6930mm * W: 2460mm * H: 3265-3300mm |
| Turning Radius | 4350mm |
| Gradeability | 20% |
| Travel Speed | 24/28 km/s |
