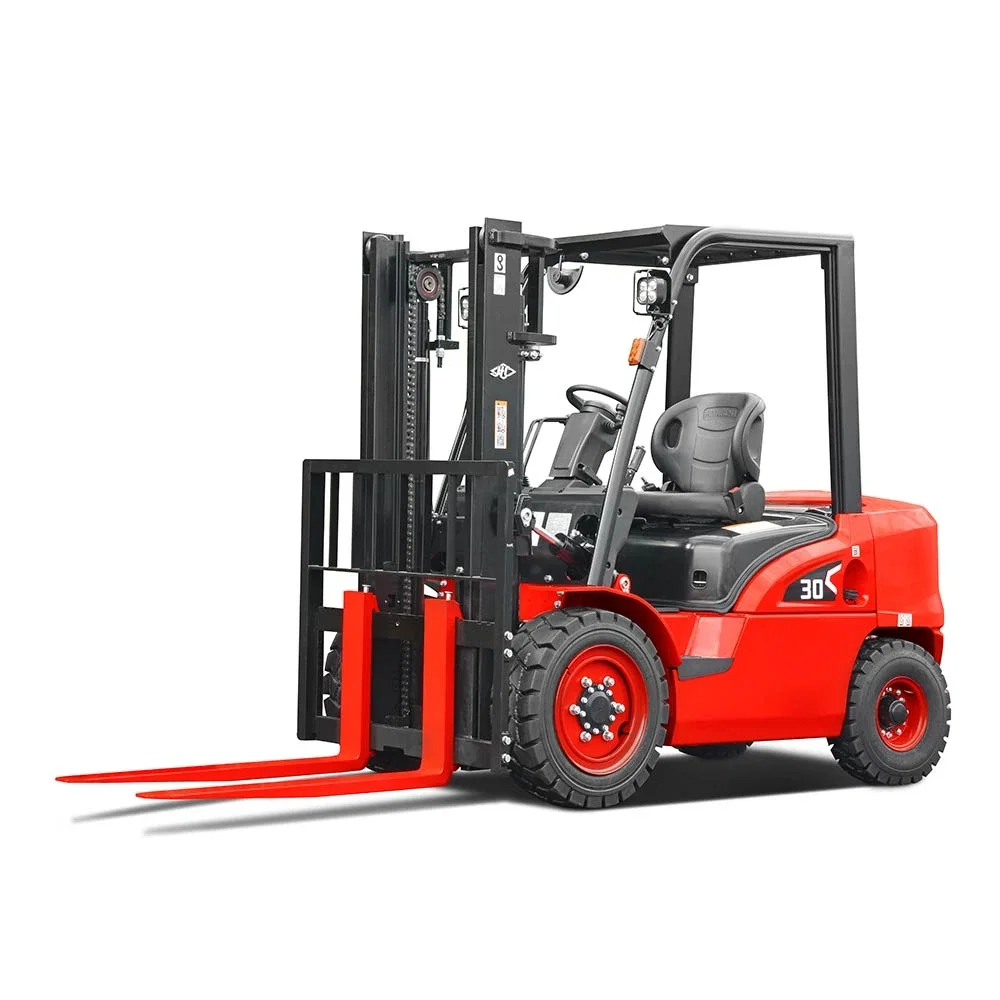

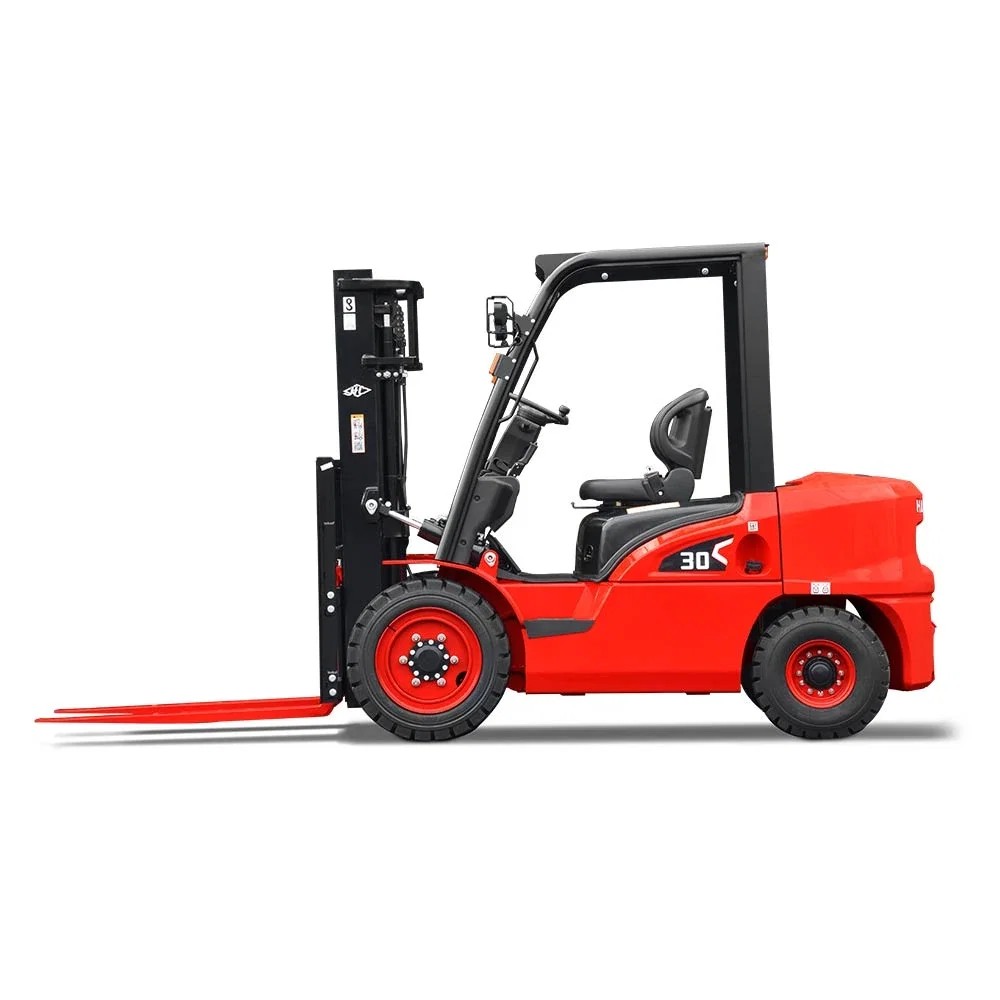

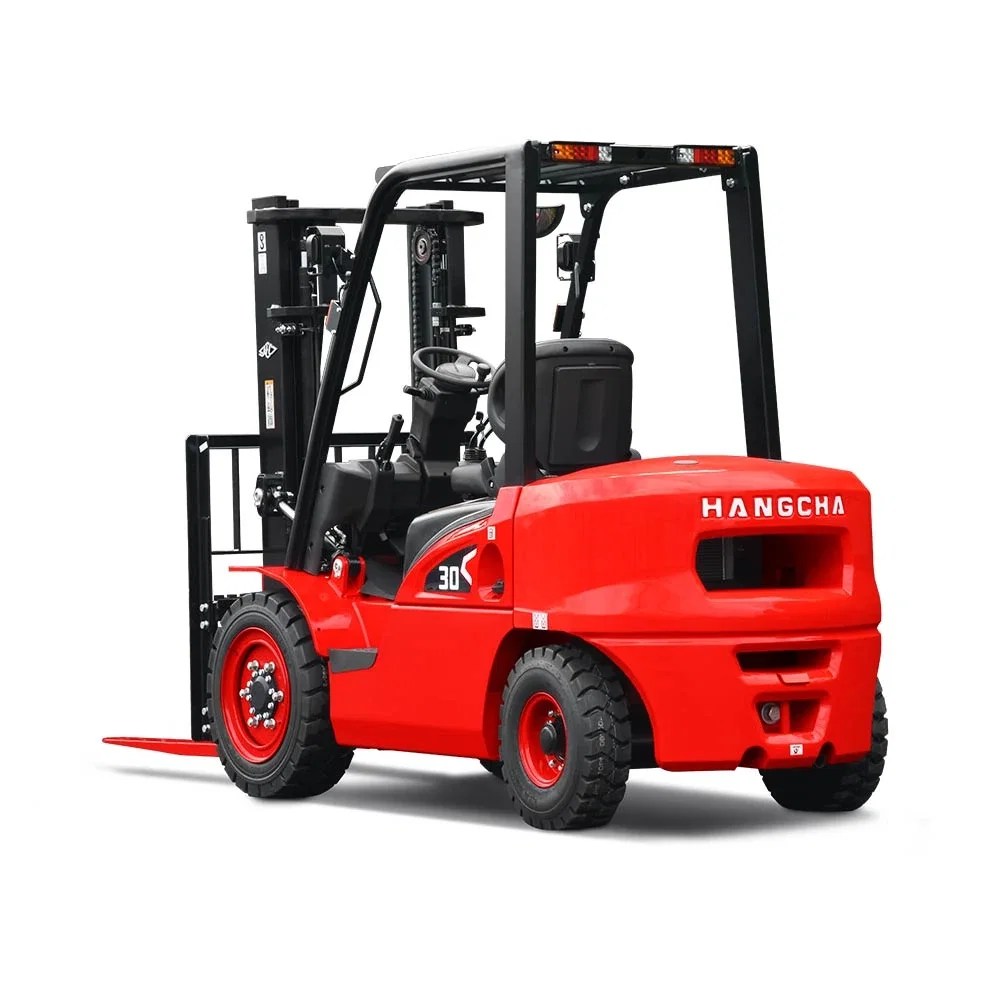

X series 1.5-3.8t Internal Combustion Counterbalanced Forklift Truck
- Load Capacity 1,500~3,800kg
- Lift Height 2000~7000mm
- Drive Types Diesel, LPG
Highlights

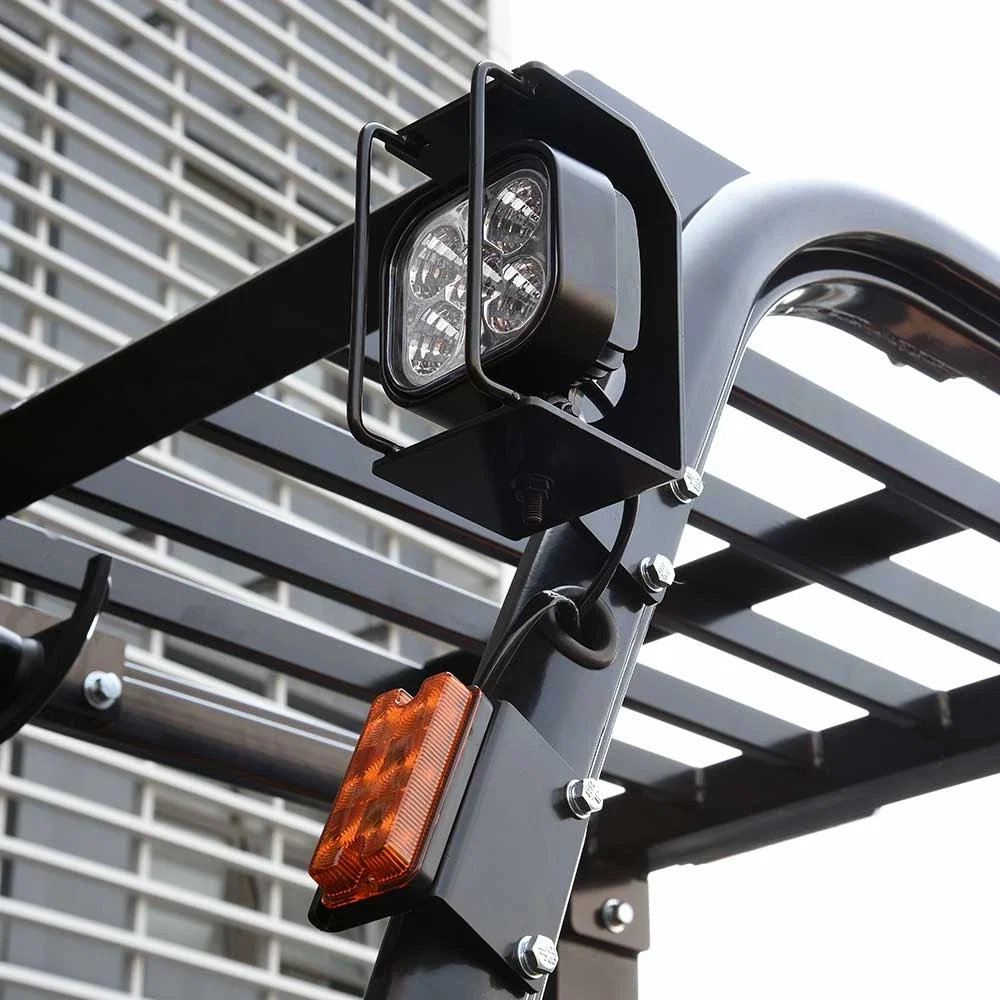

The entire truck is equipped with LED lights and a new-type panoramic retroreflector, ensuring energy efficiency and power savings while significantly enhancing the performance and lifespan of the luminaires.

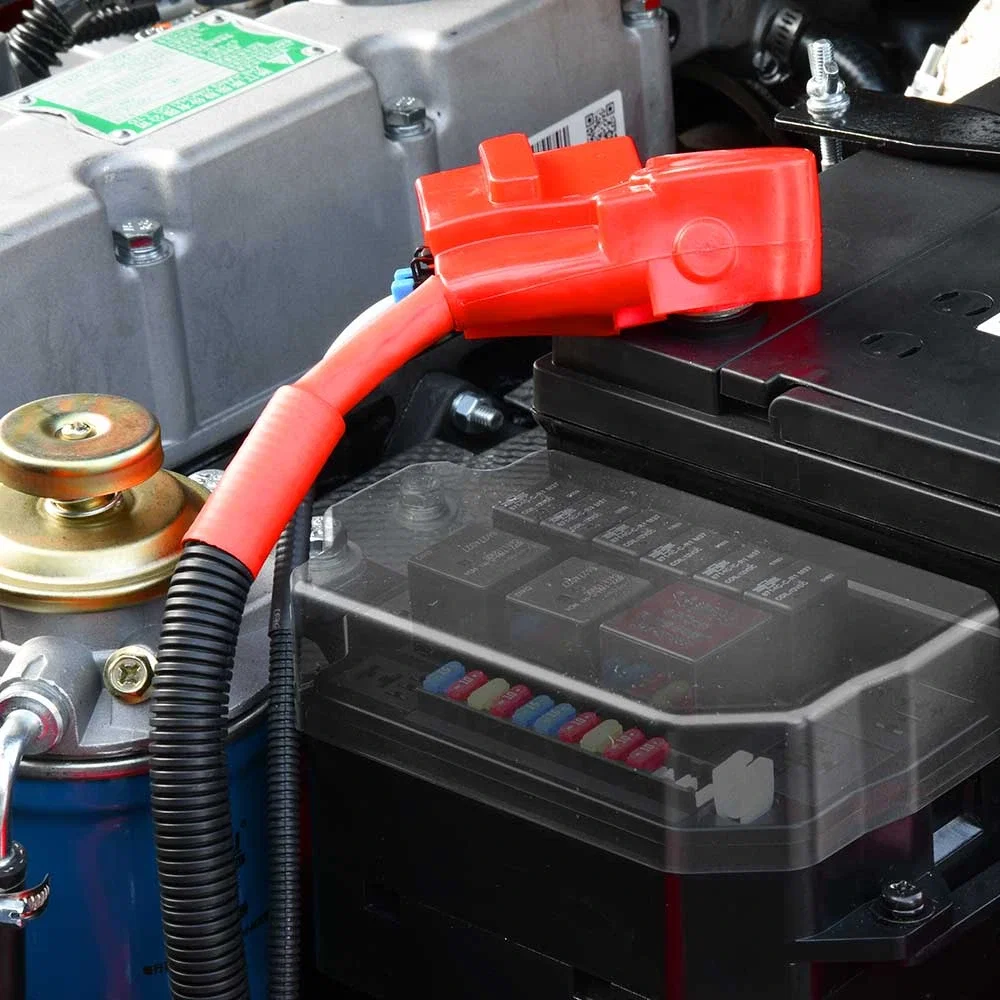

The adoption of a new-generation integrated electric box enhances maintenance and repair convenience, optimizes layout for greater efficiency, and improves waterproof performance.

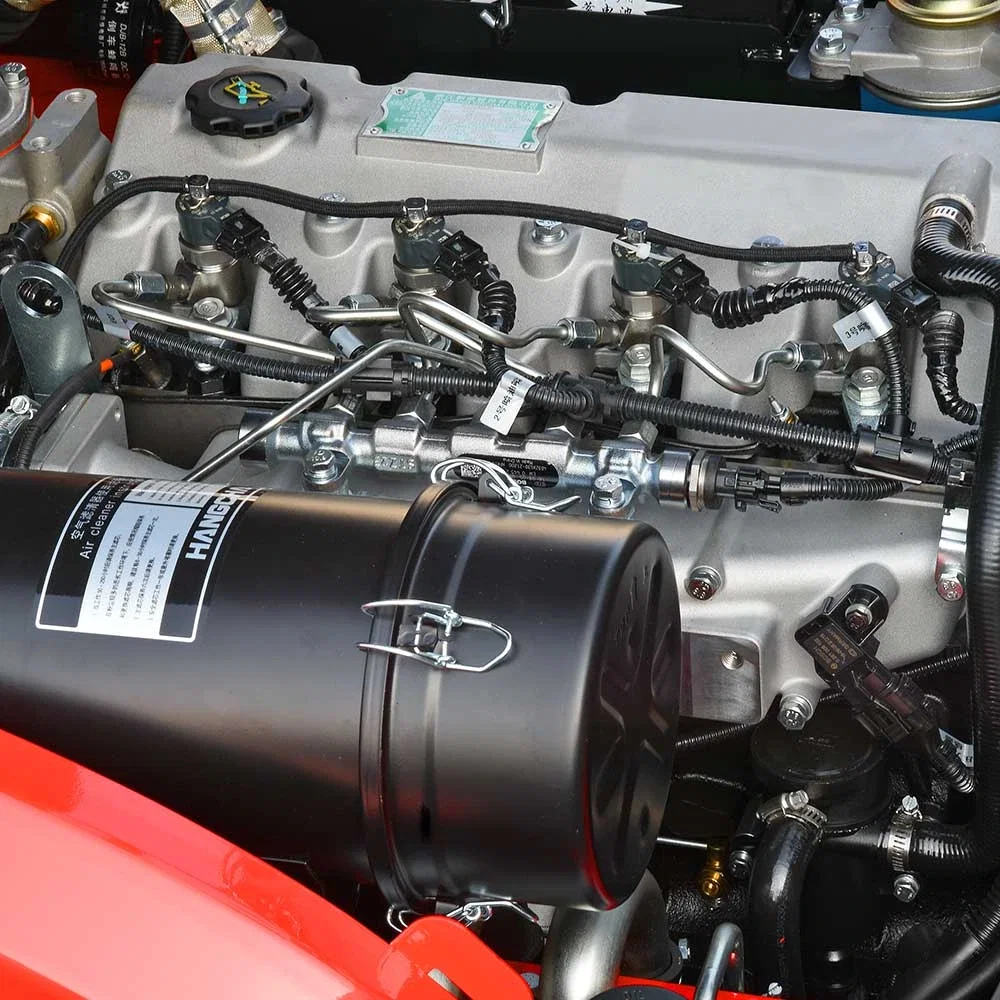

The high-pressure common rail electronically controlled engine utilizes high-pressure multiple injection technology to deliver strong power output, lower emissions, and improved cold-start performance while reducing energy consumption by 10%.
The overhead guard is made of specially shaped steel tubing, enhancing structural strength and improving the cab's sealing performance.
Features
Comfort

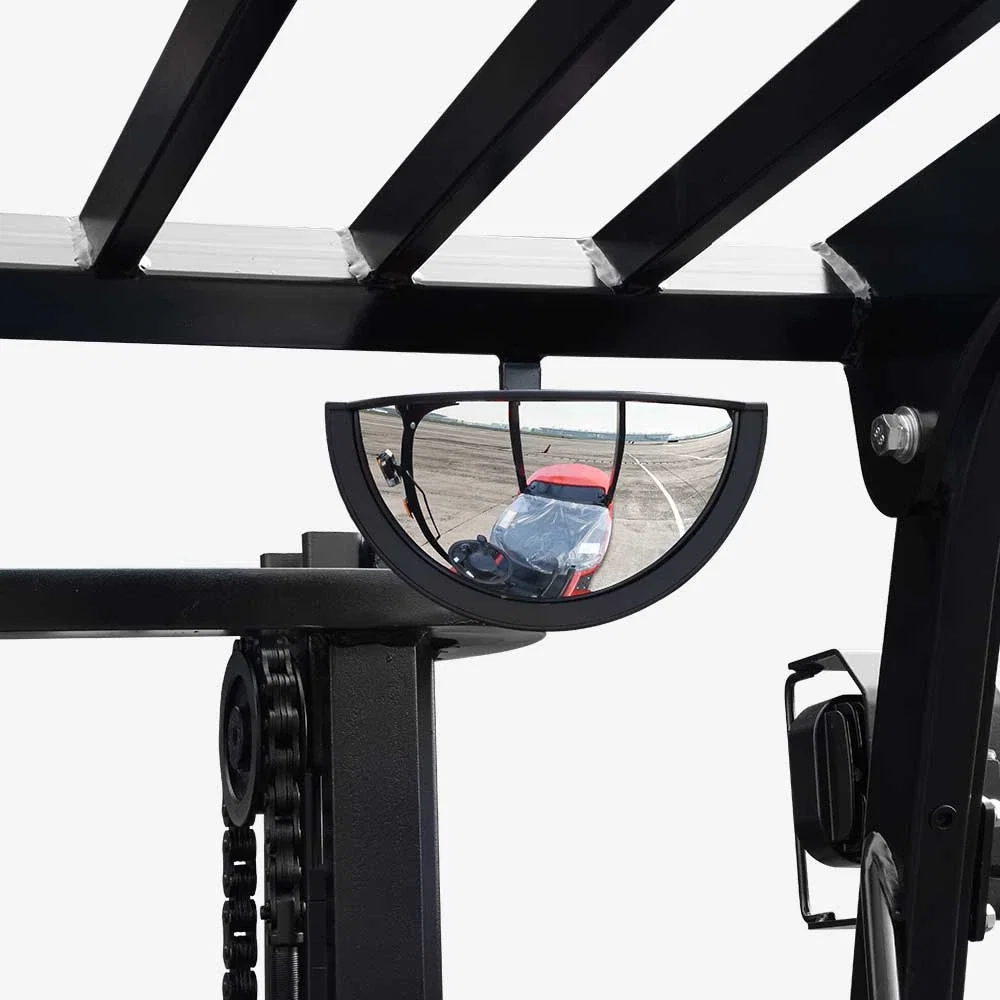

The adoption of a new-type box iron increases the inner mast's inside width and expands the spacing between lifting cylinders. Lowering the instruments within the cabin significantly enhances forward visibility, while an optimized counterweight design greatly improves rear visibility.
Reliability
2.0~3.8t roller bearing on the steering axle king pin adopts large size tapered roller bearing (TRB), larger steering cylinder and bumper block assemblies on the top, which can prolong the service life of bearing and highly improve the reliability of steering axle.
Maintenance
The enlarged opening angle of hood and increase of left and right hood side plates can provide you with convenient and rapid maintenance mode.
Other Specifications
| Product Type | IC- Trucks |
|---|---|
| Load Capacity | 1,500~3,800kg |
| Lift Height | 2000~7000mm |
| Service Weight | 2720-4380kg |
| Dimensions (L/W/H) | (3205~3770)*(1485~1725)*(3955~4140)mm |
| Turning Radius | 2035~2480mm |
| Gradeability | 25% |
| Travel Speed | (16.5~20)/(17.5~21) km/h |
| Battery Voltage (STD) | 12V/90Ah |
