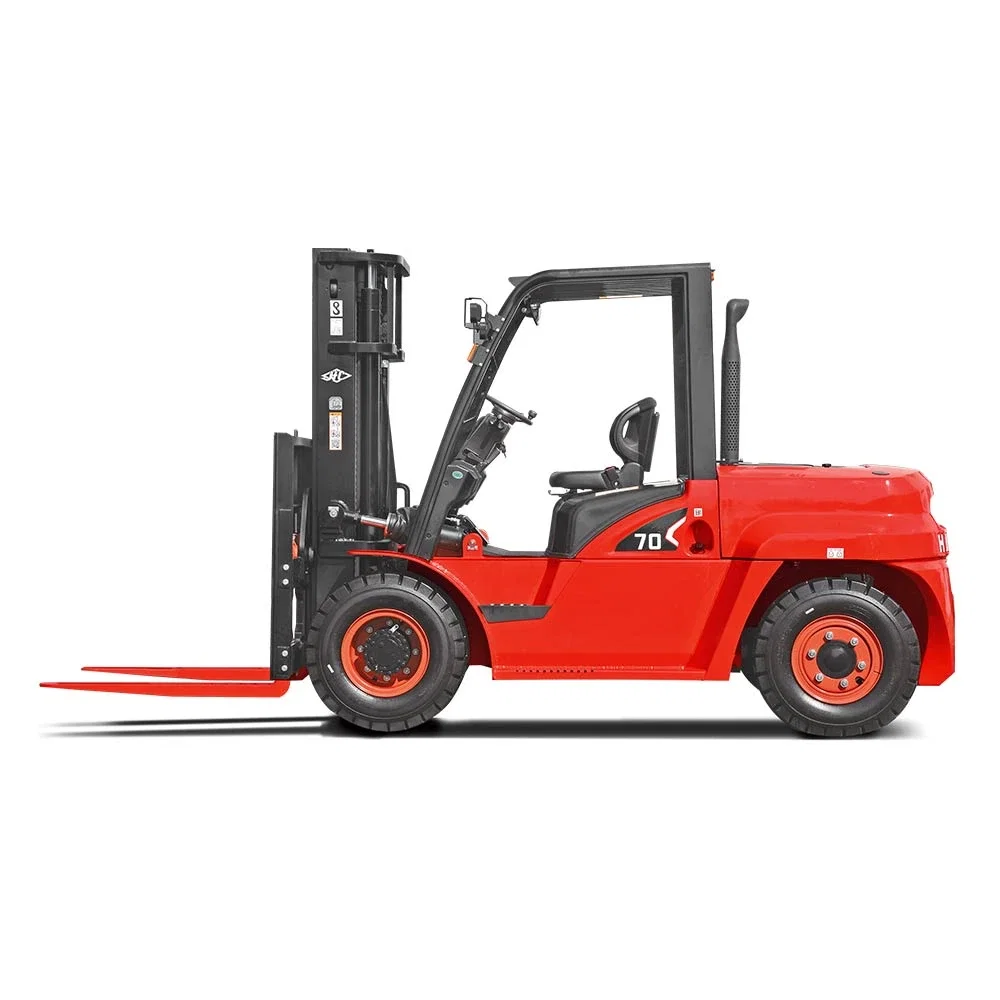

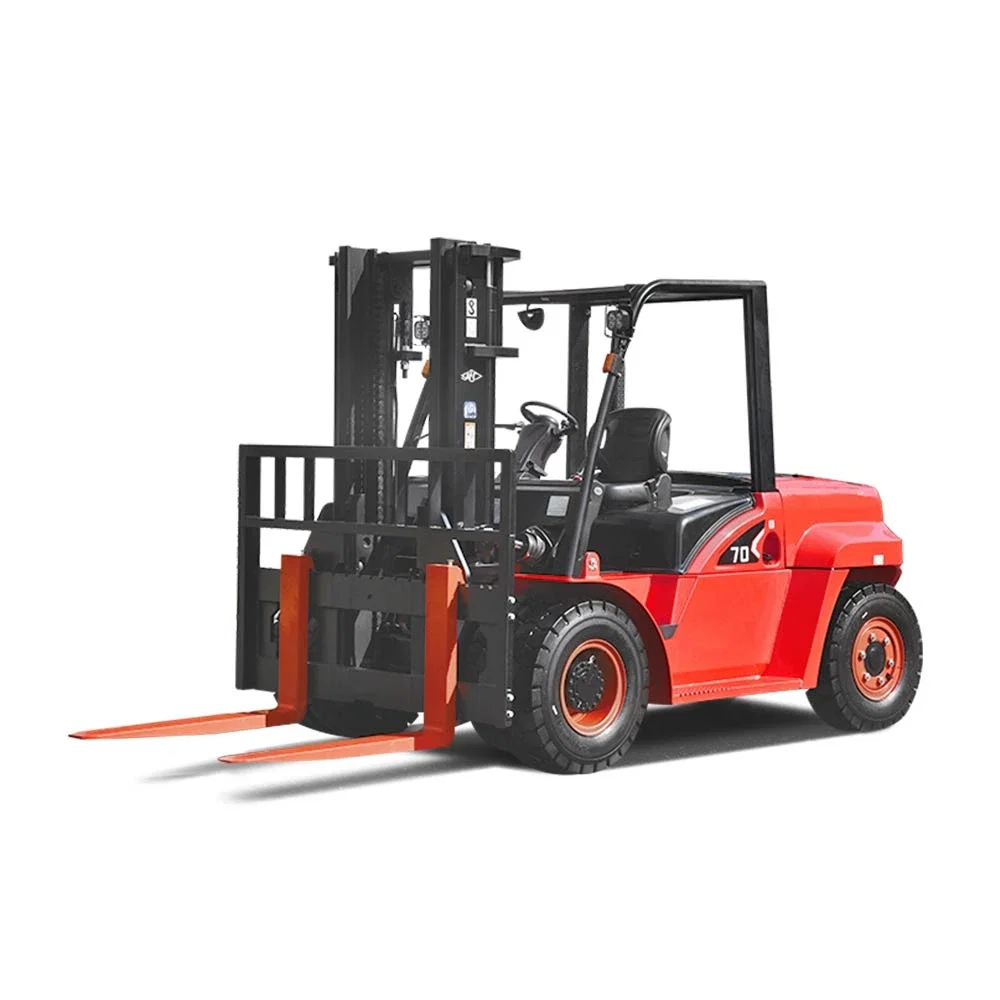

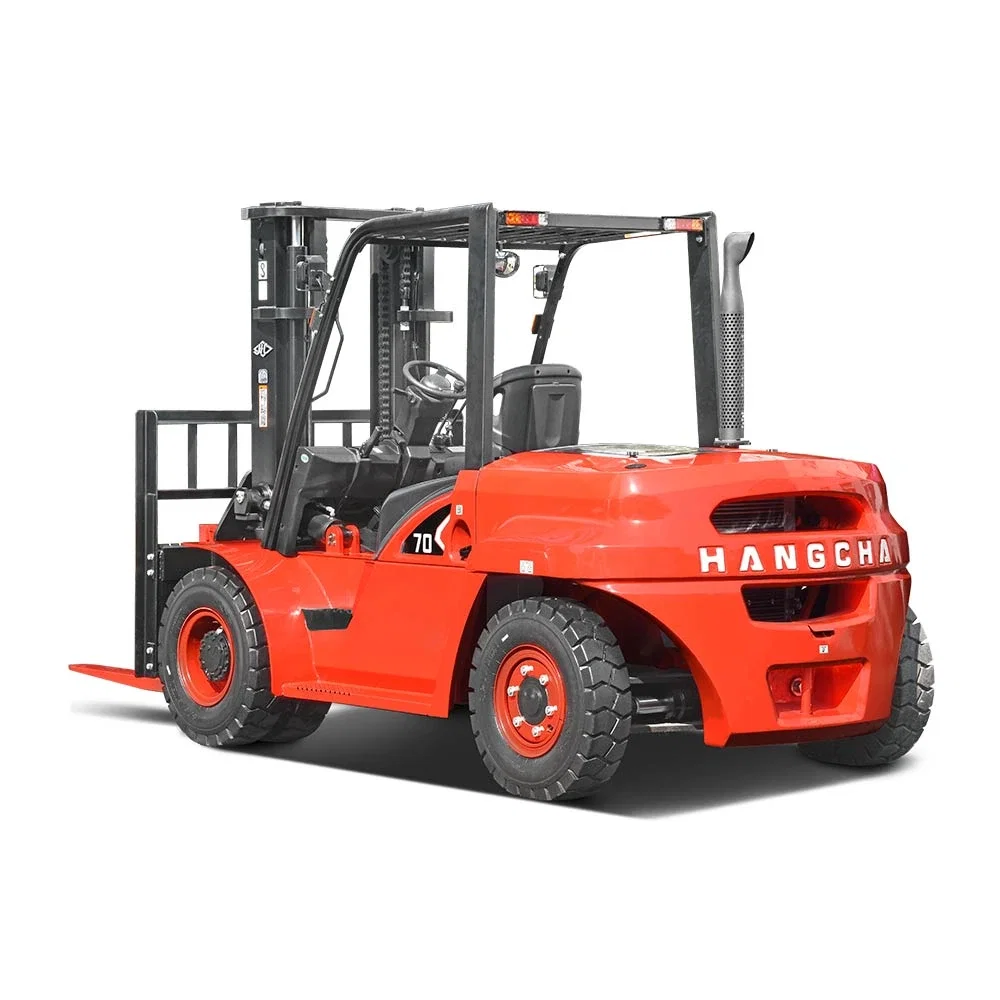

X series 5.0-10.0t Internal Combustion Counterbalanced Forklift Truck
- Load Capacity 5,000~10,000kg
- Lift Height 2500-7000mm
- Drive Types Diesel, LPG
Highlights
The low-profile, narrow-body construction enables smooth maneuverability in tight spaces like container interiors for efficient material handling.

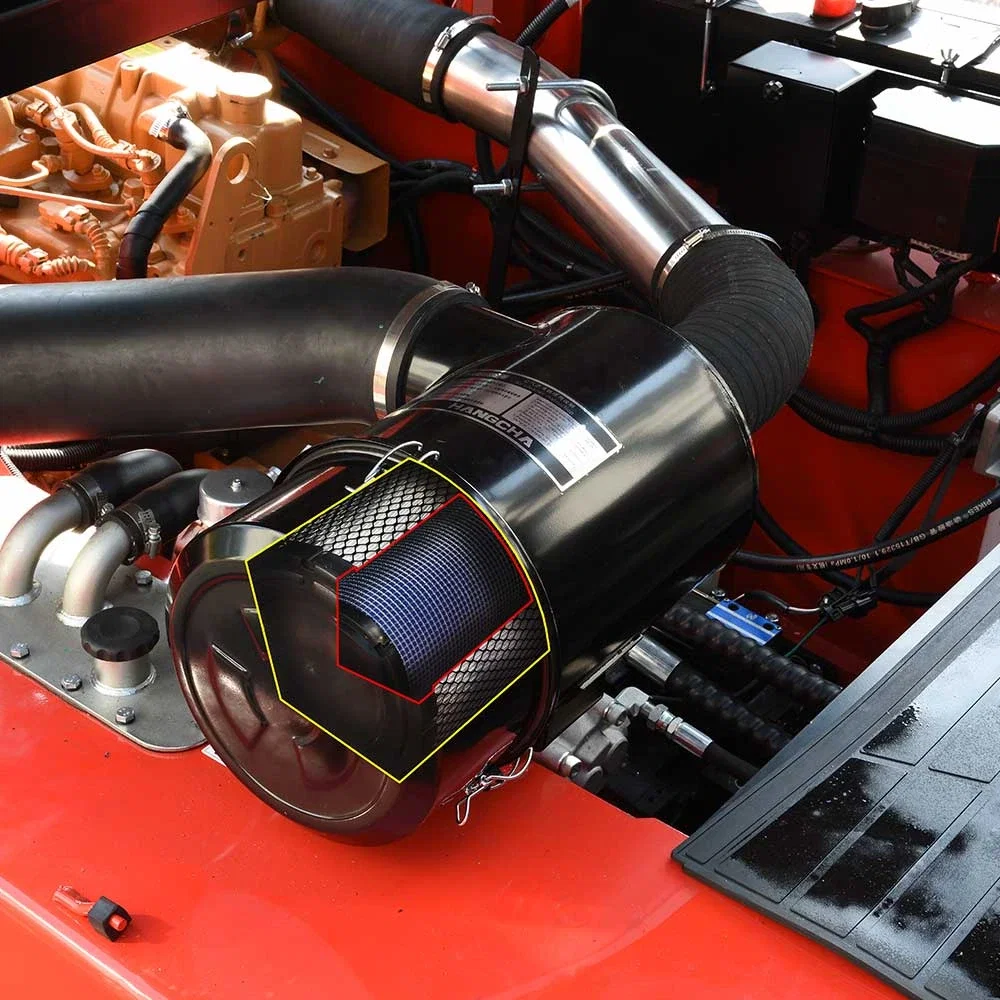

High-capacity intake/exhaust silencers minimize operational noise and vibrations, ensuring comfortable performance in noise-sensitive environments.

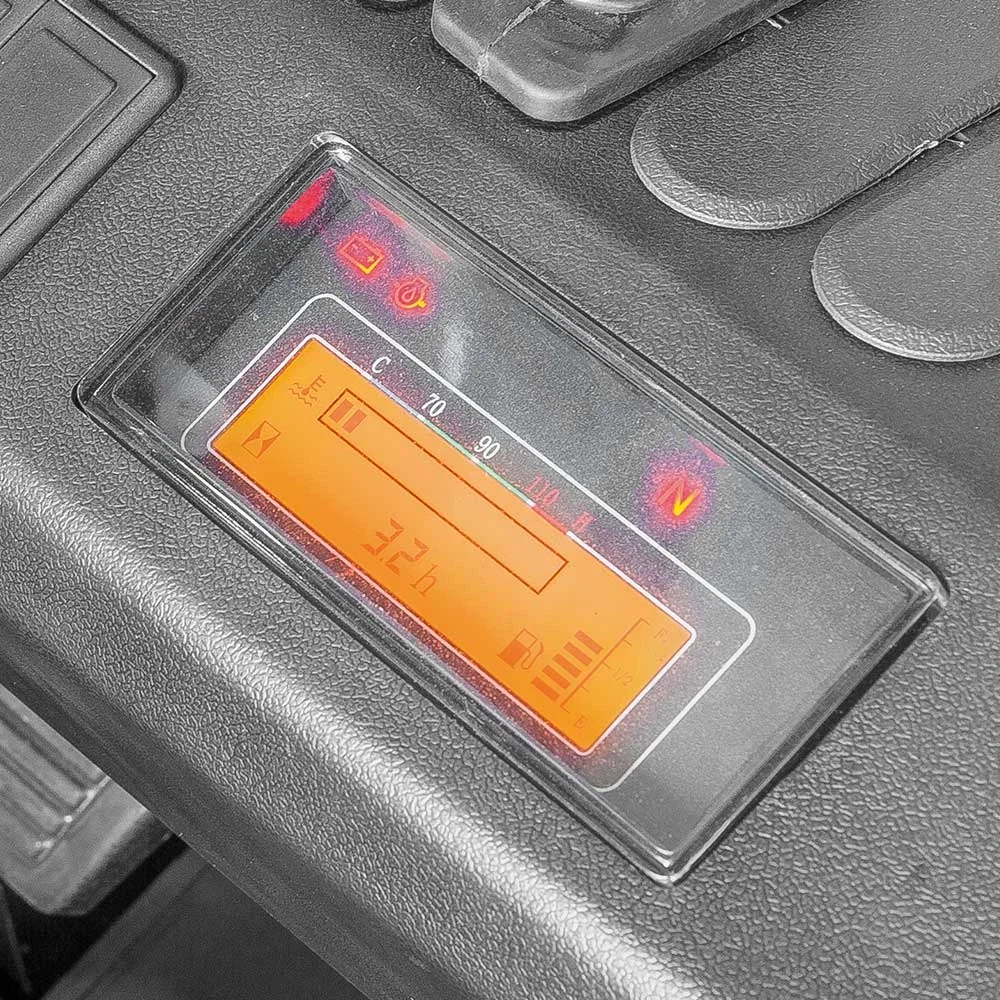

Real-time diagnostics and status monitoring via a stable LCD interface streamline troubleshooting and maintenance procedures.

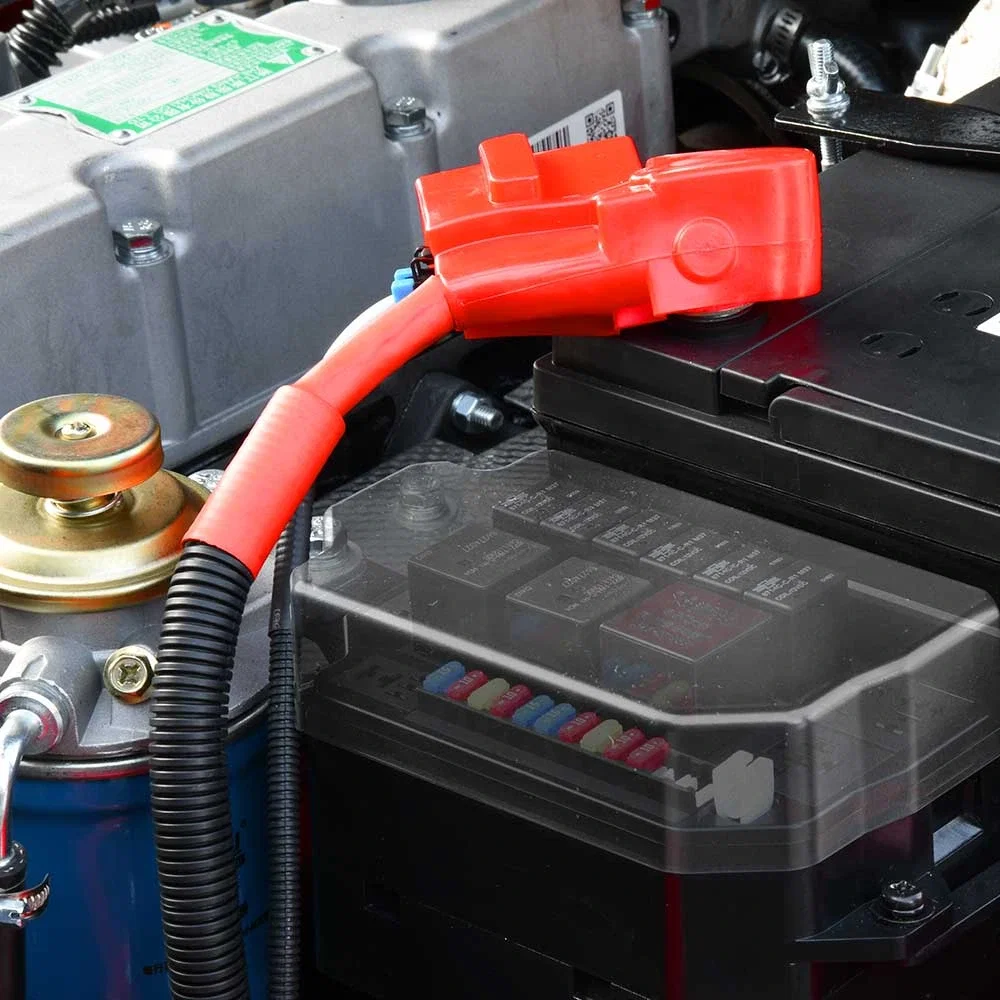

The waterproof, integrated electric box simplifies servicing while withstanding harsh conditions for reliable long-term operation.
Features
Energy conservation and environmental protection
The entire truck is equipped with LED lights and a new-type panoramic retroreflector, ensuring energy conservation and power savings. This setup not only enhances lighting performance but also significantly improves the durability and service life of the luminaires.
Reliability
The radiator features an aluminum plate-fin design, providing enhanced performance and increased structural strength. With a separate oil radiator, optimized oil and water heat dissipation channels, and dual ventilation holes on the counterweight, the system significantly improves cooling efficiency and ensures reliable engine operation, even during heavy-duty or overloaded conditions.
Intelligentized management system (option)
The reserved plug for extending the function of the Intelligent module is located on the wire bundles, making truck management more convenient and efficient by enabling quicker integration of additional features.
Other Specifications
| Product Type | IC- Trucks |
|---|---|
| Load Capacity | 5,000~10,000kg |
| Lift Height | 2500-7000mm |
| Service Weight | 8150-12900 KG |
| Dimensions (L/W/H) | L:4720-5750 * W:1990-2197 * 2400-2580 mm |
| Turning Radius | 3230-3940 mm |
| Gradeability | 43/20% |
| Travel Speed | 27/30km/h |
| Battery Voltage (STD) | 12V/90Ah |
