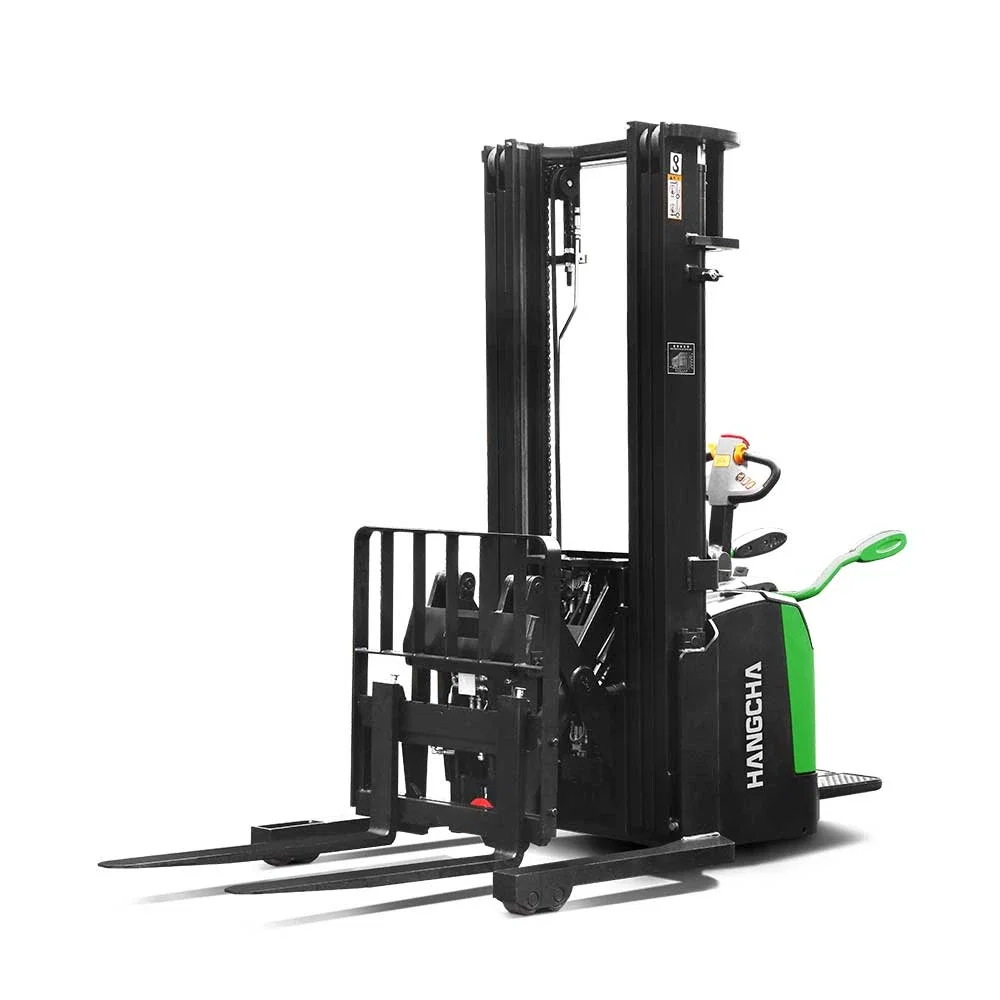

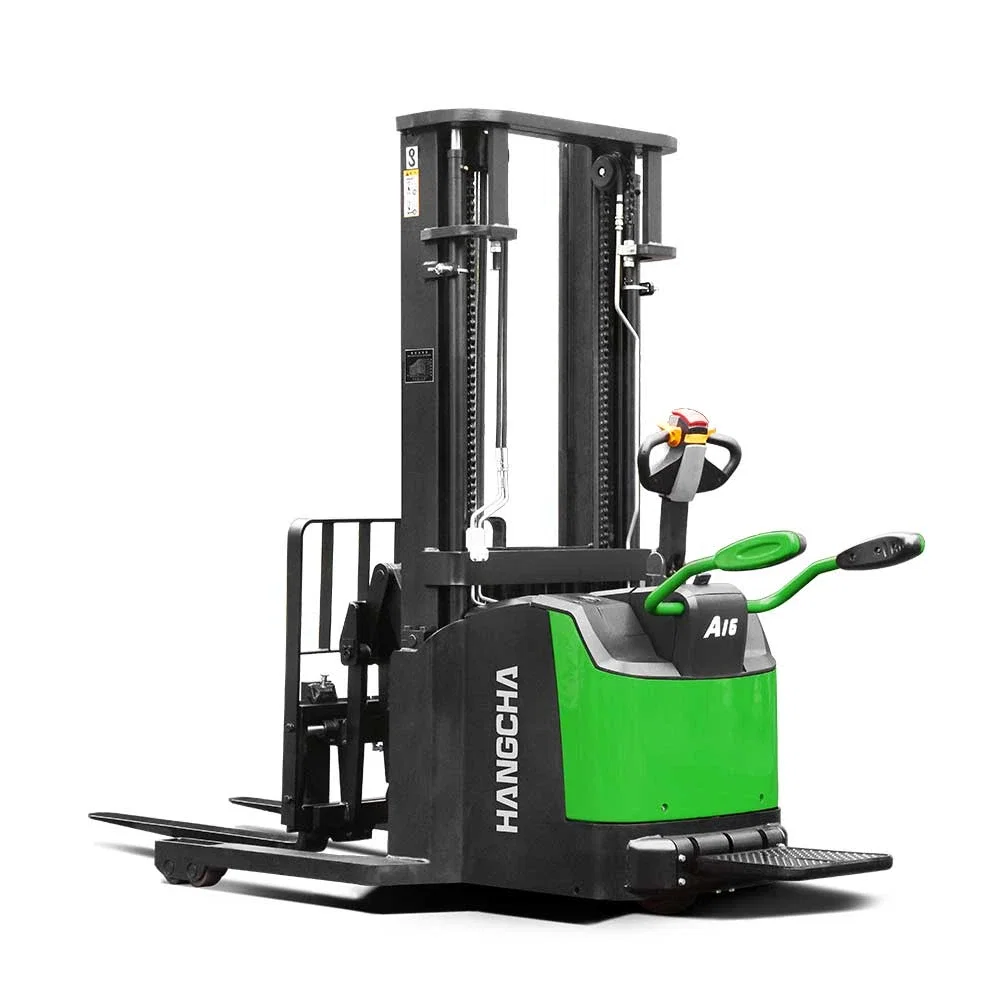

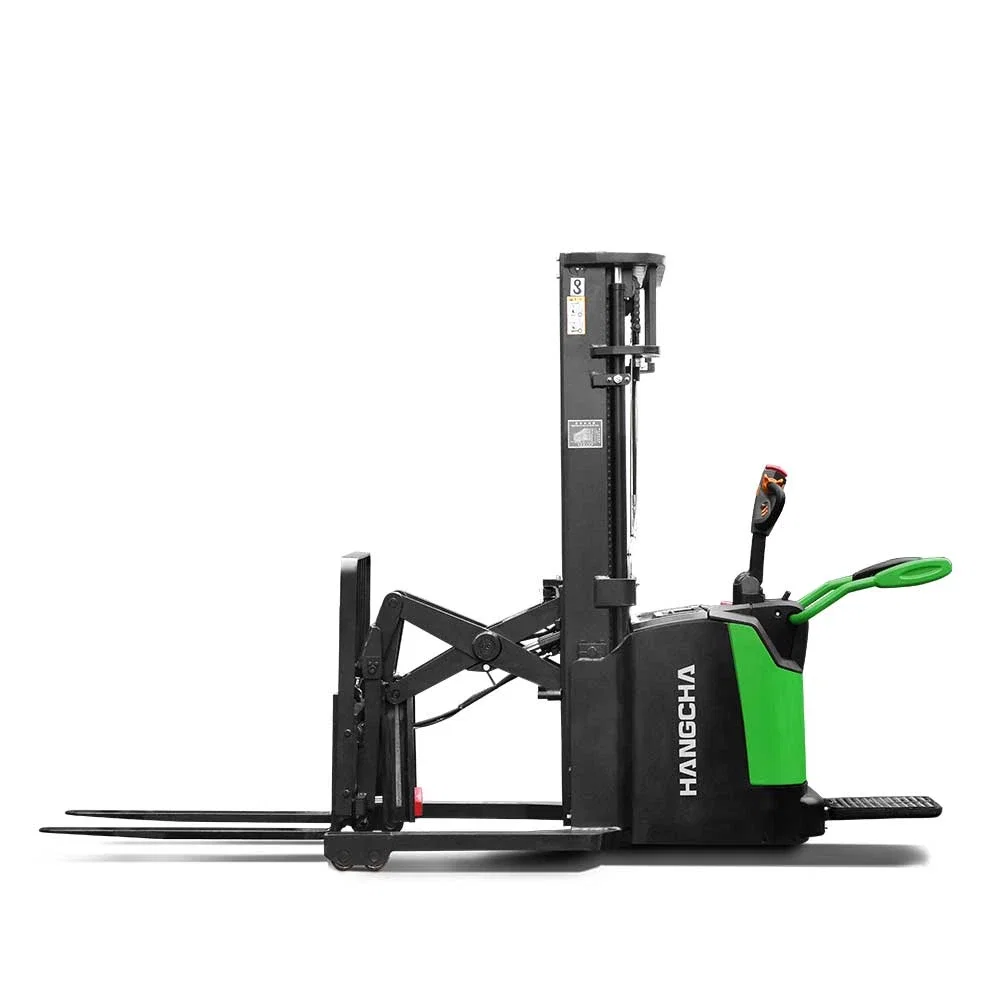

A Series high range stand-on stacker with reach fork
- Load Capacity 1200-1600kg
- Lift Height 2500-5500mm
- Drive Types Li-Ion
Highlights

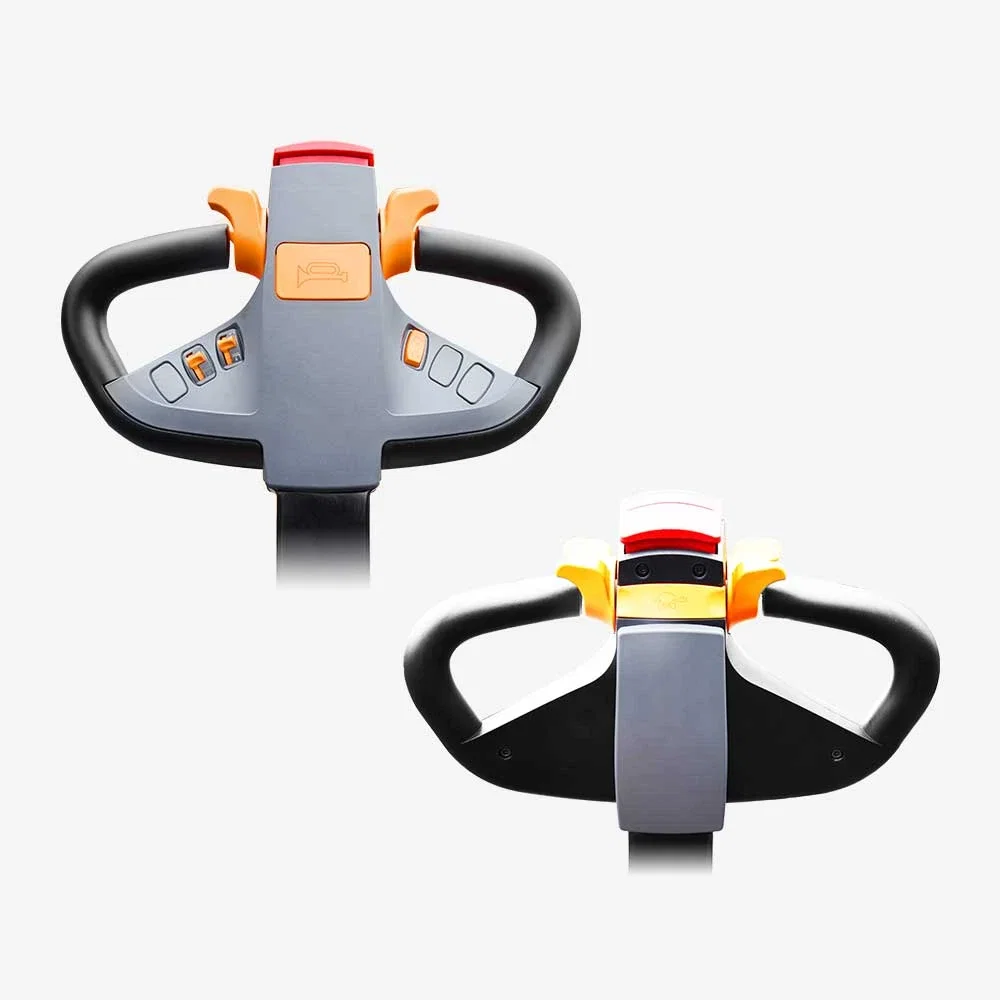

Smart Control System - The multi-function tiller with EPS (Electric Power Steering) enables effortless, single-handed operation with adaptive responsiveness for precise load handling in confined spaces.

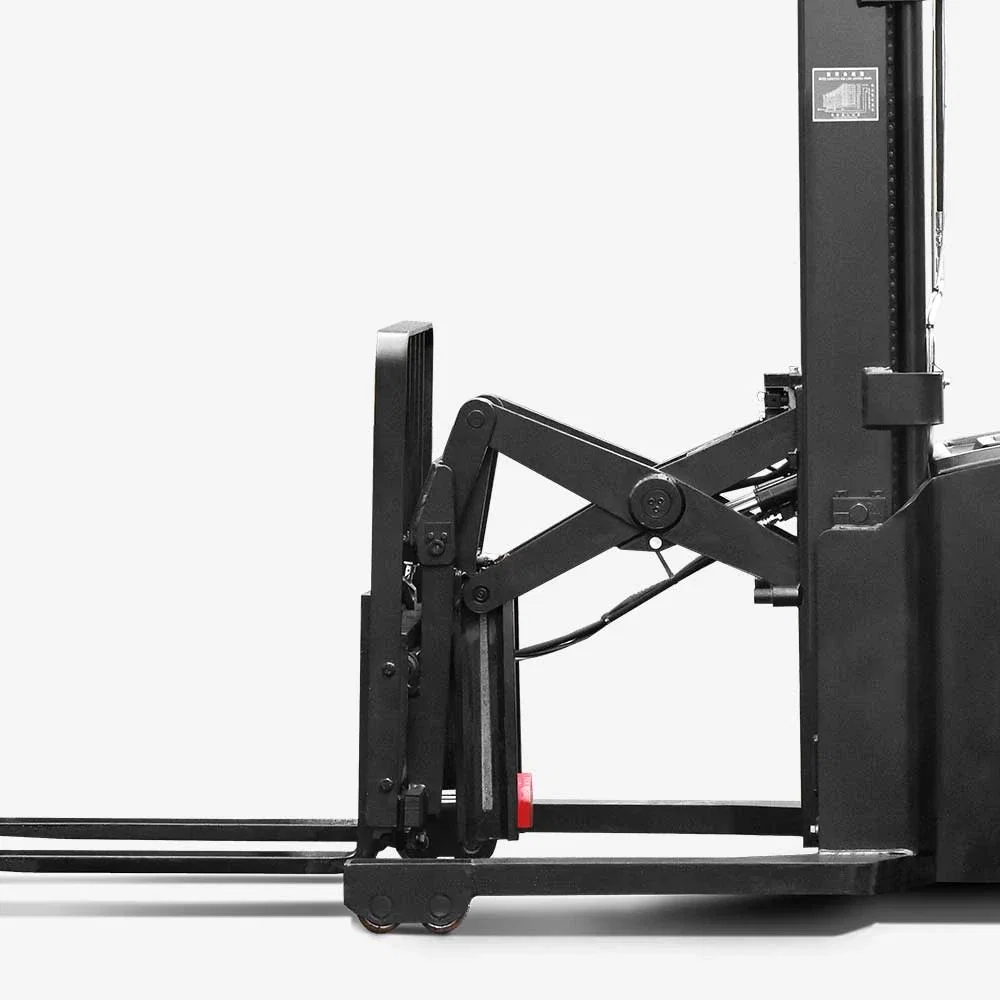

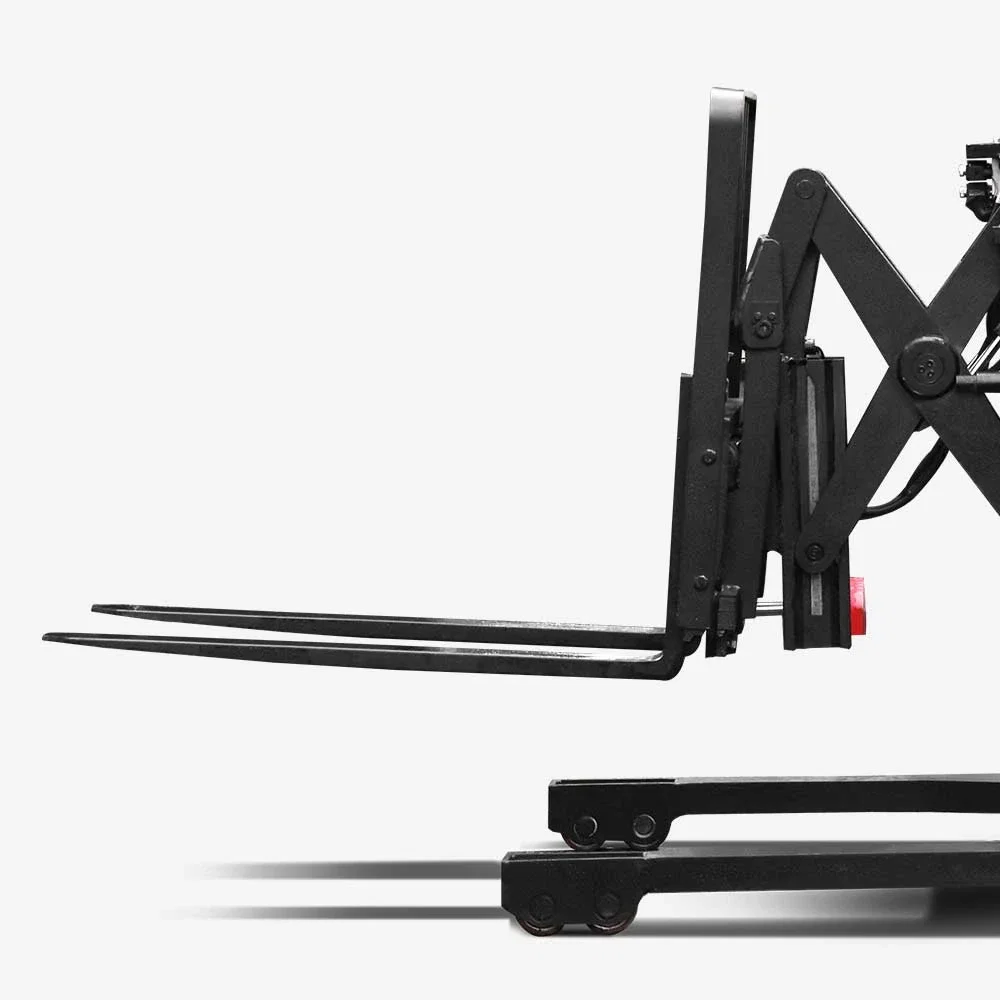

Scissor Fork Mechanism - A robust scissor-type extension system provides smooth forward fork movement, enabling dual-mode operation for both standard and non-palletized loads with exceptional stability.

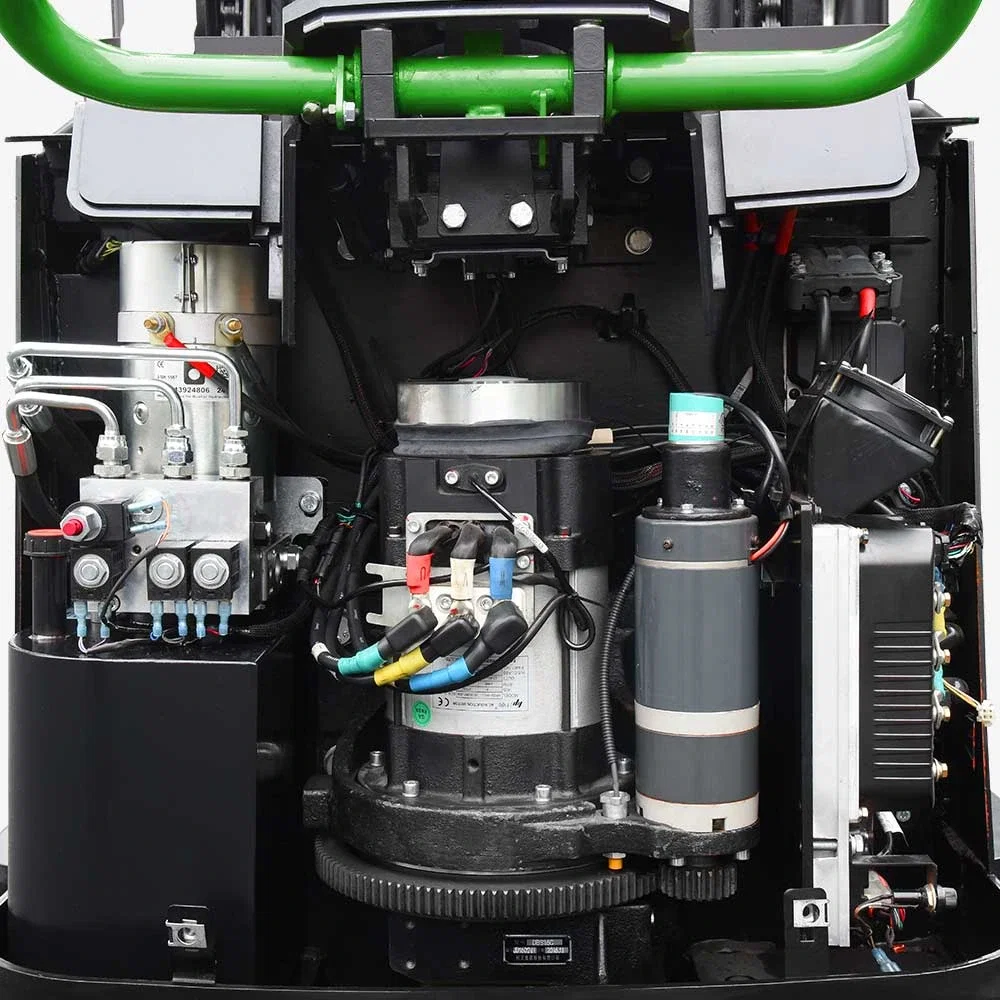

Maintenance Accessibility - The fully openable back cover offers tool-free access to critical components, significantly reducing service downtime and simplifying routine maintenance procedures.
Precision Load Handling - Proportionally controlled fork movement ensures millimeter-accurate positioning, while adjustable speed settings optimize both delicate placements and high-efficiency cycling.
Features
Reliability
Featuring imported waterproof plug connectors and shielded cable protection, the electrical system delivers exceptional corrosion resistance and stable performance in harsh environments for maximum operational uptime.
High Performance
The integrated EPS (Electric Power Steering) system provides effortless, precision control with adaptive responsiveness, significantly improving handling efficiency during intensive material handling operations.
Comfort
Engineered with anti-vibration pedal technology, the operator interface minimizes fatigue during extended shifts through optimized ergonomic design and shock-absorbing materials.
Safety
Utilizing brushless AC drive motor technology, the maintenance-free system ensures reliable power delivery while eliminating brush wear hazards and reducing long-term ownership costs.
Other Specifications
| Product Type | Lithium E-Trucks, Reach Trucks |
|---|---|
| Load Capacity | 1200-1600kg |
| Lift Height | 2500-5500mm |
| Service Weight | 1870-2000kg |
| Dimensions (L/W/H) | 2295*1225*2040mm |
| Turning Radius | 1682mm |
| Gradeability | 10% |
| Travel Speed | 5.5/6.0 km/h |
| Battery Voltage (STD) | 24V/280-340Ah |
