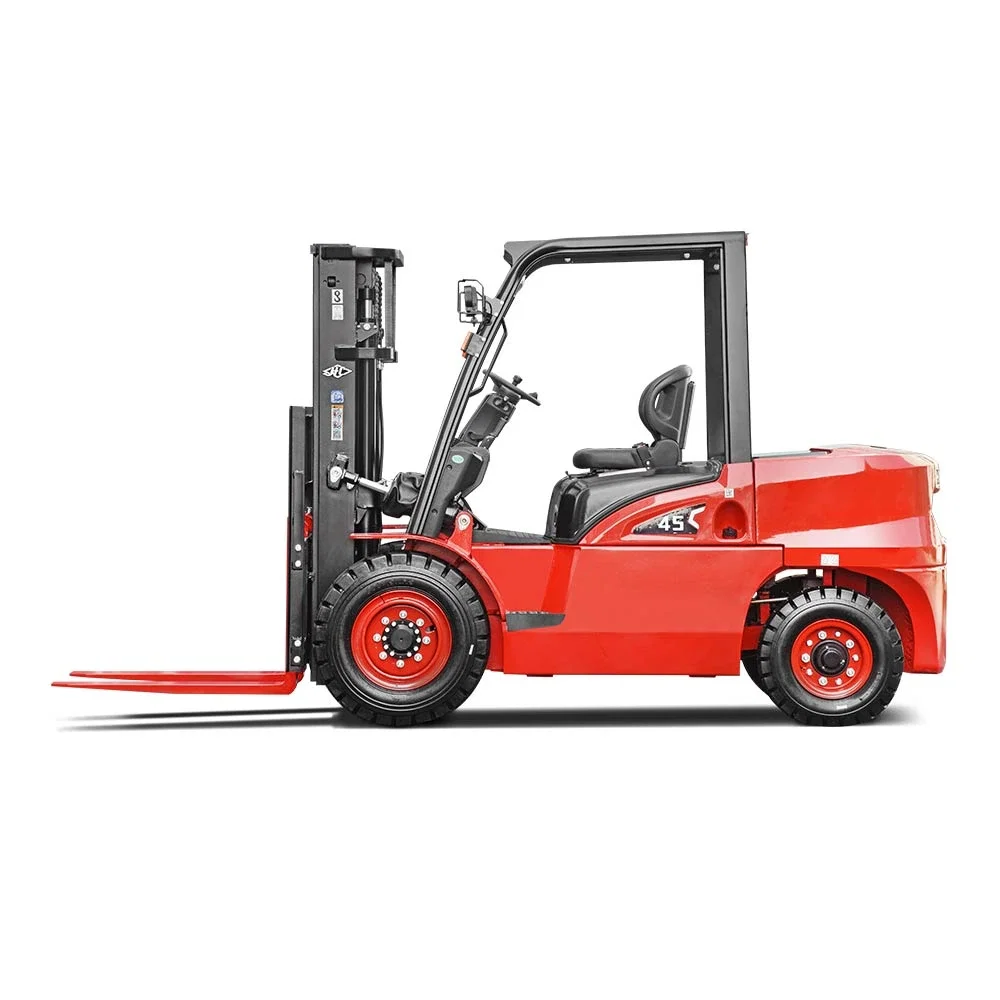

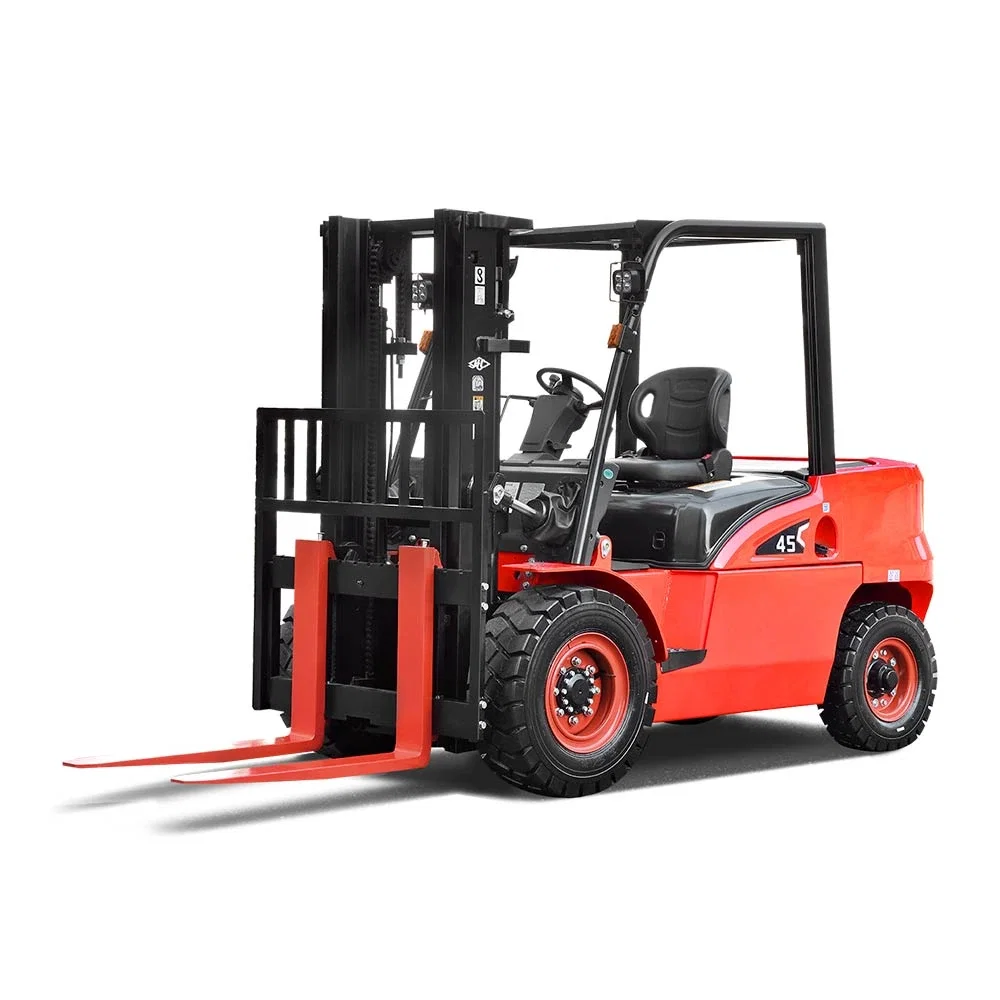

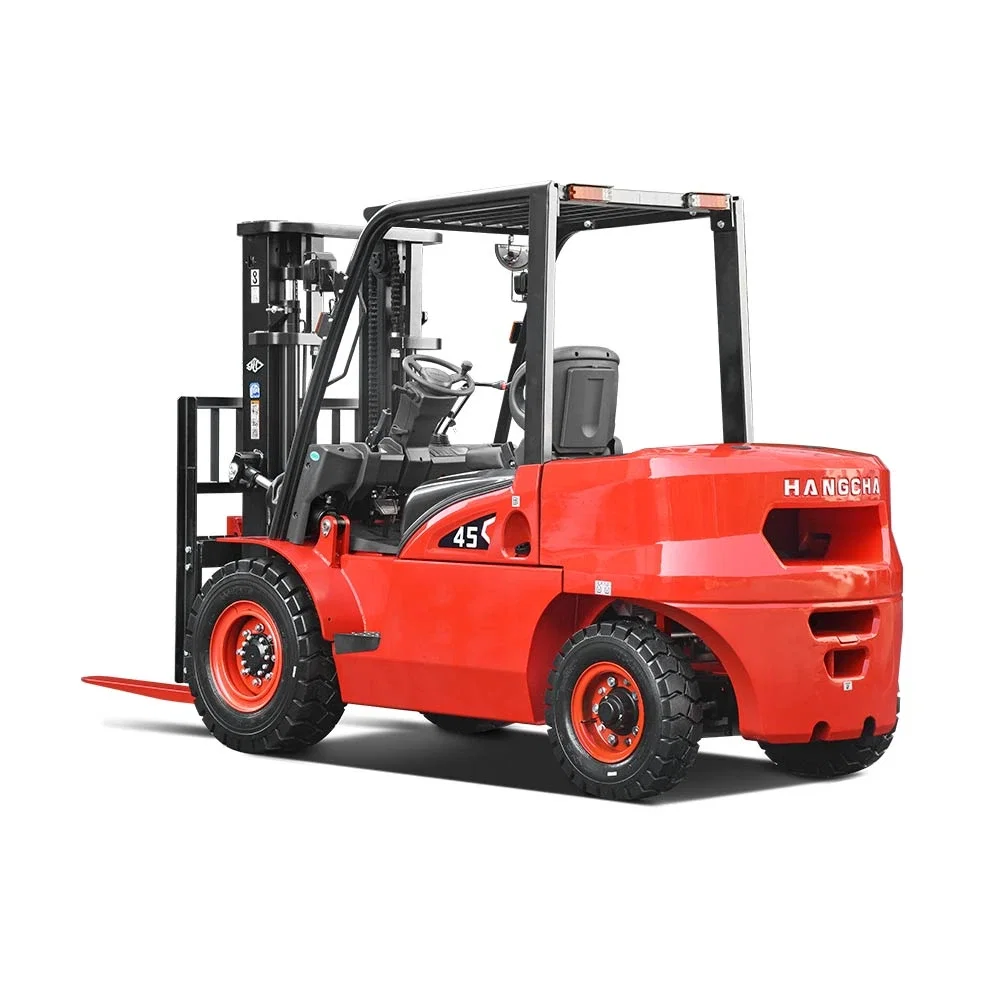

X series 4.0-5.5t Internal Combustion Counterbalanced Forklift Truck
- Load Capacity 4,000~5,000kg
- Lift Height 2500-7000mm
- Drive Types Diesel, LPG
Highlights

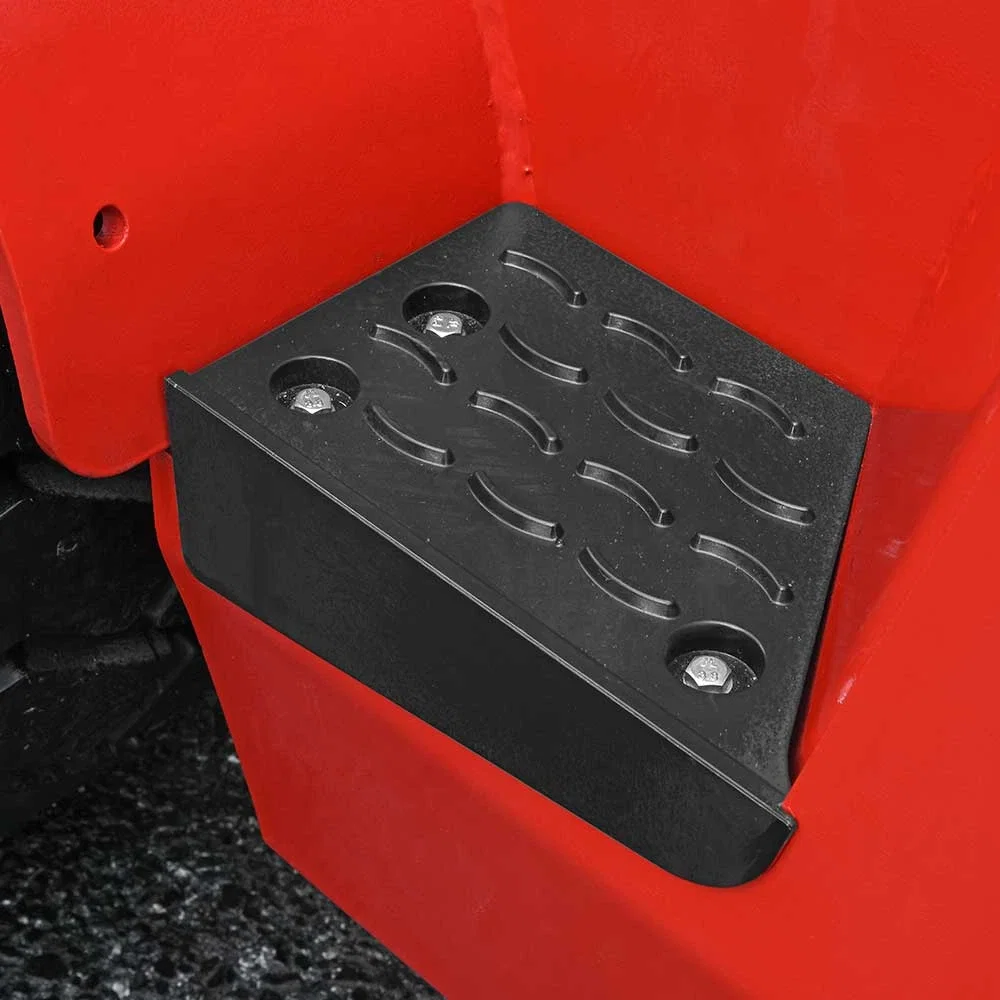

The anti-slip pedal design makes it easier and safer for the operator to get on and off the truck, enhancing overall driving safety.

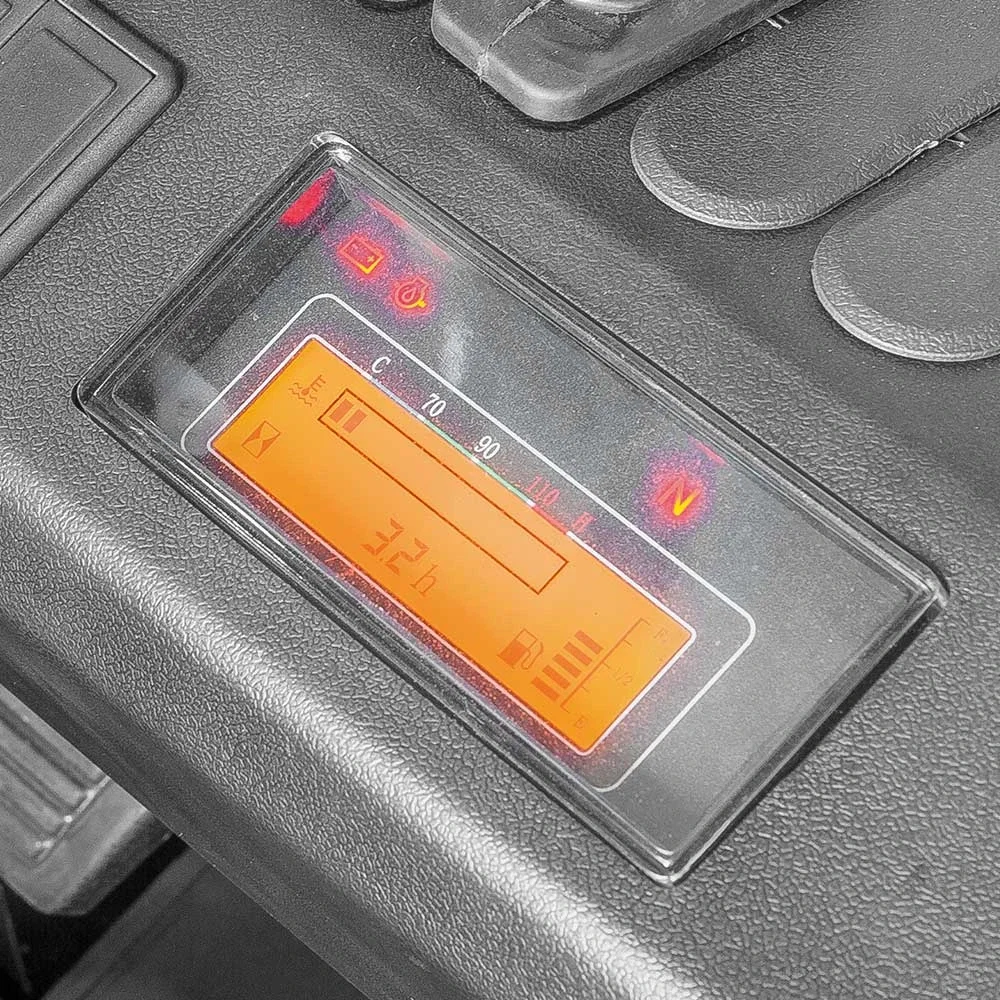

LCD Instrument - The advanced LCD display provides real-time operational data and fault alerts, simplifying monitoring and maintenance for optimal truck performance.

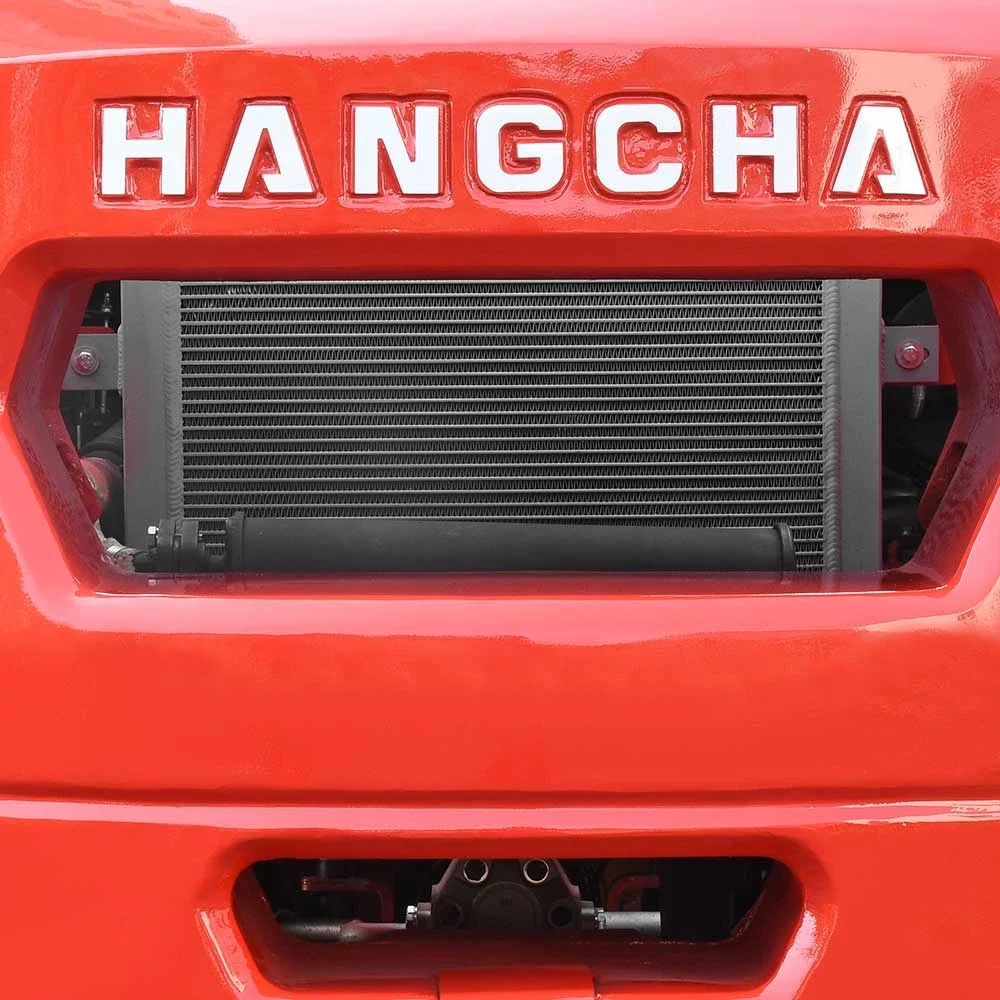

High-Efficiency Radiator - Aluminum plate-fin design with dual cooling systems ensures reliable heat dissipation during heavy loads, preventing engine overload failures.

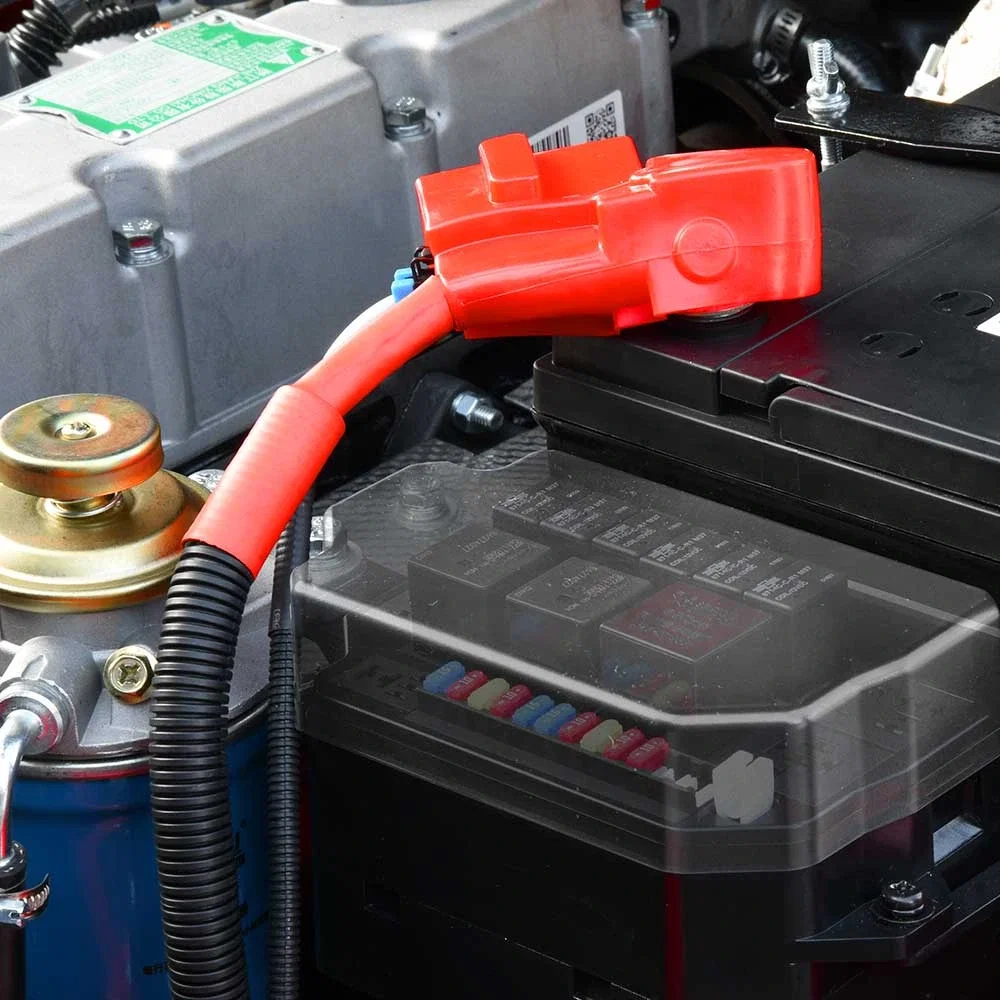

The new-generation integrated electric box simplifies maintenance and repairs with a more rational layout. It also offers improved water-proof performance, enhancing durability and reliability in various operating conditions.
Features
Energy Conservation and Environmental Protection
The standard engine features a high-pressure common rail electronically controlled system with multiple injection technology. This ensures strong power output, reduced emissions, and improved cold-start performance, while achieving up to 10% energy savings.
Reliability
The overhead guard is constructed from specially shaped steel tubing, enhancing structural strength and improving the cab's sealing performance.
Maintenance
The enlarged hood opening angle, along with the extended left and right side plates, enables a more convenient and efficient maintenance experience.
Comfort
The small-diameter steering wheel, combined with an electro-hydraulic system and a car-style double-handle combination switch, significantly enhances driving comfort.
Other Specifications
| Product Type | IC- Trucks |
|---|---|
| Load Capacity | 4,000~5,000kg |
| Lift Height | 2500-7000mm |
| Service Weight | 6,200~6,750kg |
| Dimensions (L/W/H) | L: 3110~3175* W: 1420~1490* H: 2310~2345mm |
| Turning Radius | 2700~2780mm |
| Gradeability | 30% |
| Travel Speed | 24km/h |
| Battery Voltage (STD) | - |
